Automatic Ultrasonic Quilting Machine

Technical Specification

Structure

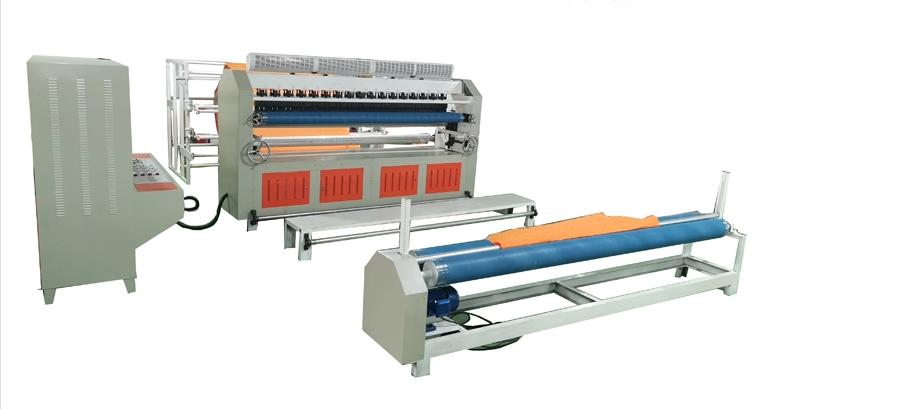

The ultrasonic quilting machine adopt the latest ultrasonic technology with strong power and stable performance.It is suitable for long time working because of excellent cooling system and imported multi circuit ultrasonic protection system to make sure machine to run safely and steadily.The machine include below main configurations:

1.Main machine with ultrasonic embossing pattern roller installed and leveled manually or pneumatically

2.Control cabinet with generators( with option of analogue and digital generator) and speed controller

3.Finished products winding device to collect quilted fabric,maximum winding diameter can up to 100cm

4.Fabrics feeding rack which can support 1-5 layers material rolls

Characteristics
1. Utilize ultrasonic power to quilt and bond fabric together without needle or thread to reduce the cost of material.

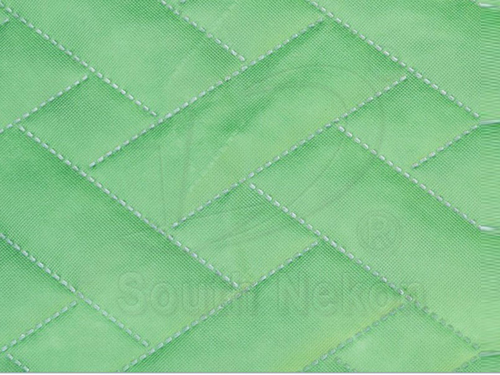

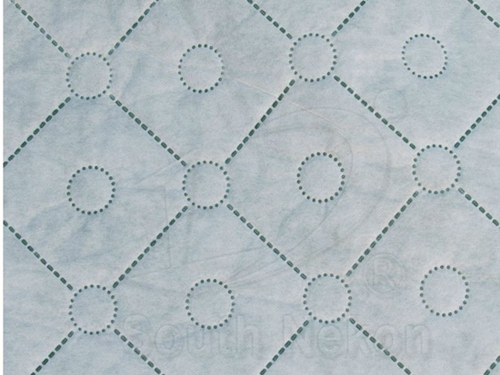

2. Numerous embossing quilting patterns can be created depends on different materials and client's special requirement.
3. Higher working speed than needle quilting machine with less maintenance, production capacity is significantly increased.

4. The machine is designed easily to operate without specail trainning.
5. Superior imported quality electronic accessories and excellent cooling system to enable long time continuous working.

Products

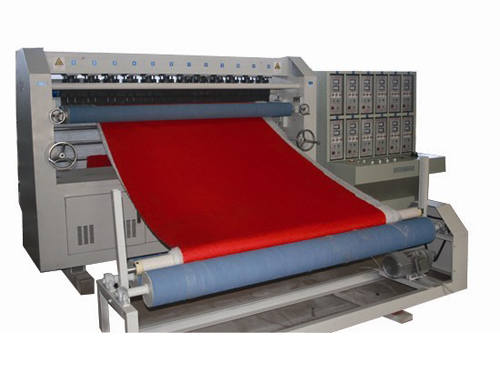

Tengchao Brand ultrasonic quilting machine model TC-1550 is an excellent equipment in production of mattresses, sofa sleeves, seat cover, suitcases, outdoor cushions, pillowcases, bed sheets, non-woven medicial cloth, etc.
