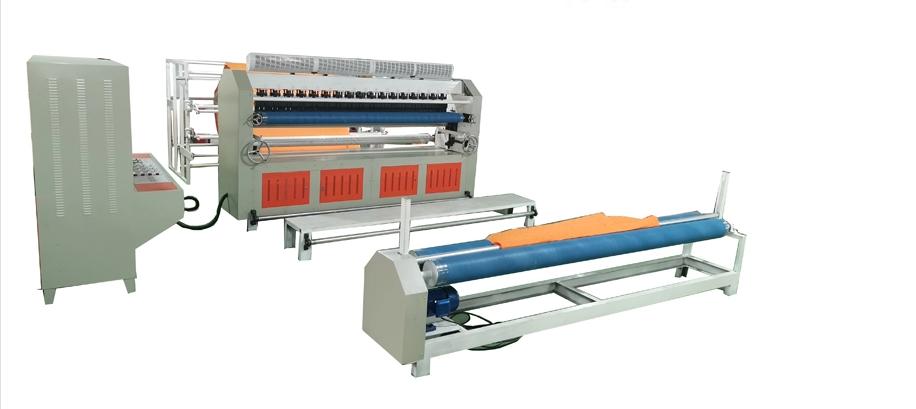

Tengchao brand Ultrasonic Quilting Machine is advanced ultrasonic quilting equipment in China.

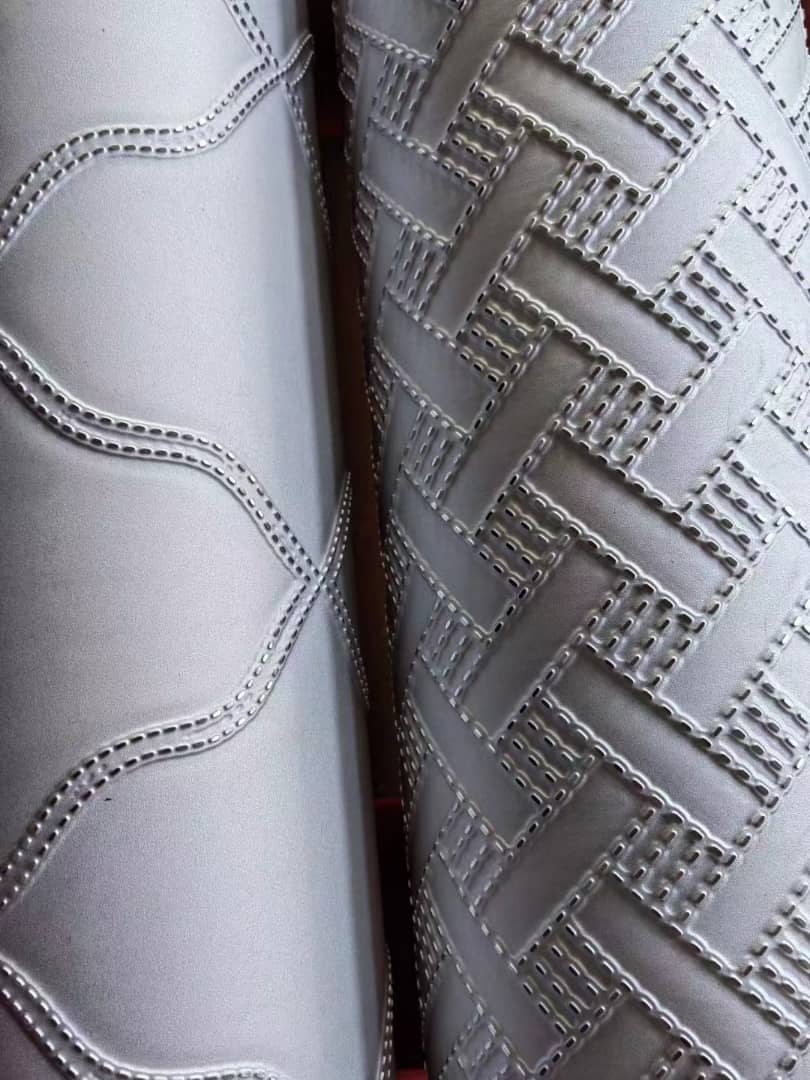

It adapts the principle of ultrasonic vibration to carry out the operations of needleless and bond lamination of 1-3 layers of synthetic fabrics.The machine is simple in operation,convenient in maintenance and high efficiency in production.The quilted fabric with abundant designs can be achieved by changing quilting pattern rollers.

Compared with traditional thread quilting machine which has similar function,Tengchao ultrasonic quilting machine is with advantages of higher production speed and no pinholes on material. It is an ideal equipment to manufacture home textiles include bedspread,pillowcase,bed sheet, sofa cover,winter cloth,mattress,etc

Basic working principle of ultrasonic quilting machine

when ultrasonic quilting machine is connected with 380v voltage supply, it starts to work and arise output frequency to be like 15khz,18khz and 20khz, the electricity pass through the transducer and electric energy is converted into mechanical vibration,after booster adjust oscillation amplitude,20khz ultrasonic vibration will appear on steel horn and quickly transmitted to fabrics while horn is touched with ultrasonic quilting roller, so the fabrics are bonded together and designed quilting effect is finished.

Specification

Features

1.Instead of traditional quilting with thread and needles, use the ultrasound needleless quilting to improve product quality

2.Special mechanical design plus a torque motor to ensure machine constant powerful working with low failure.

3.Imported high grade horn and piezoelectric ceramic to get stable performance and best quilting effect.

4.Analogue and digital generator for options to meet different needs of client

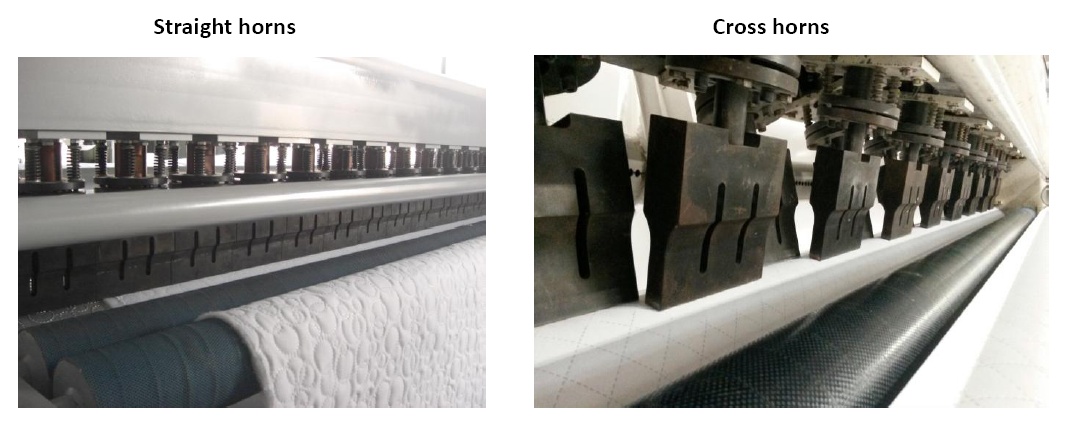

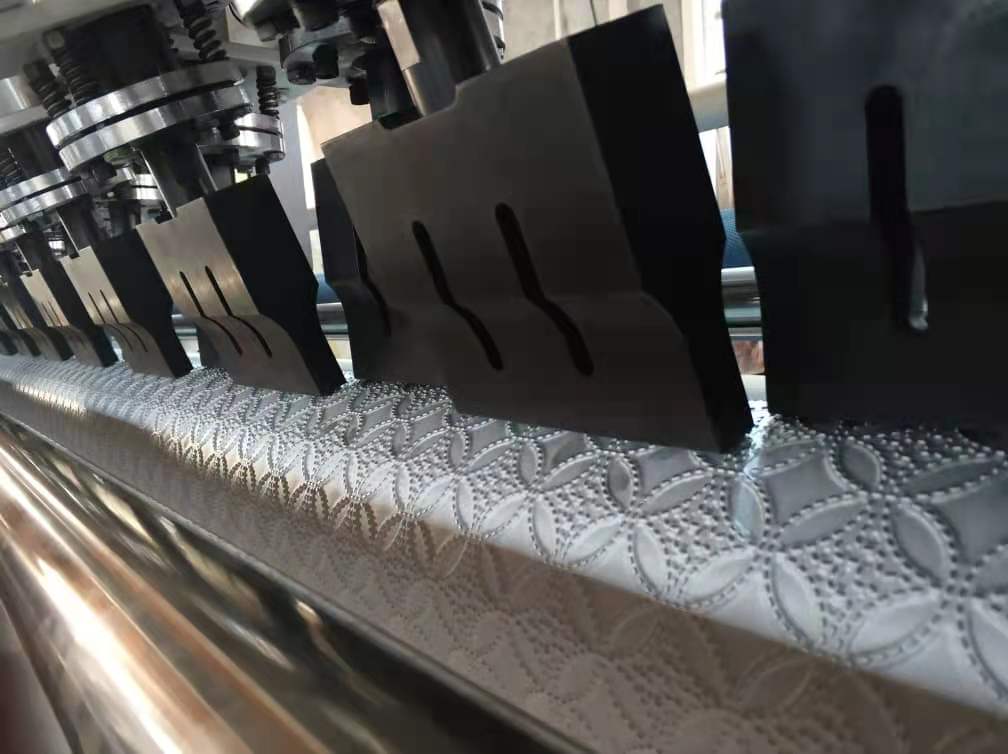

5. Effective working width ranges from 1550mm to 3200mm, with choices of straight horn, cross type horn and pneumatic head

Application

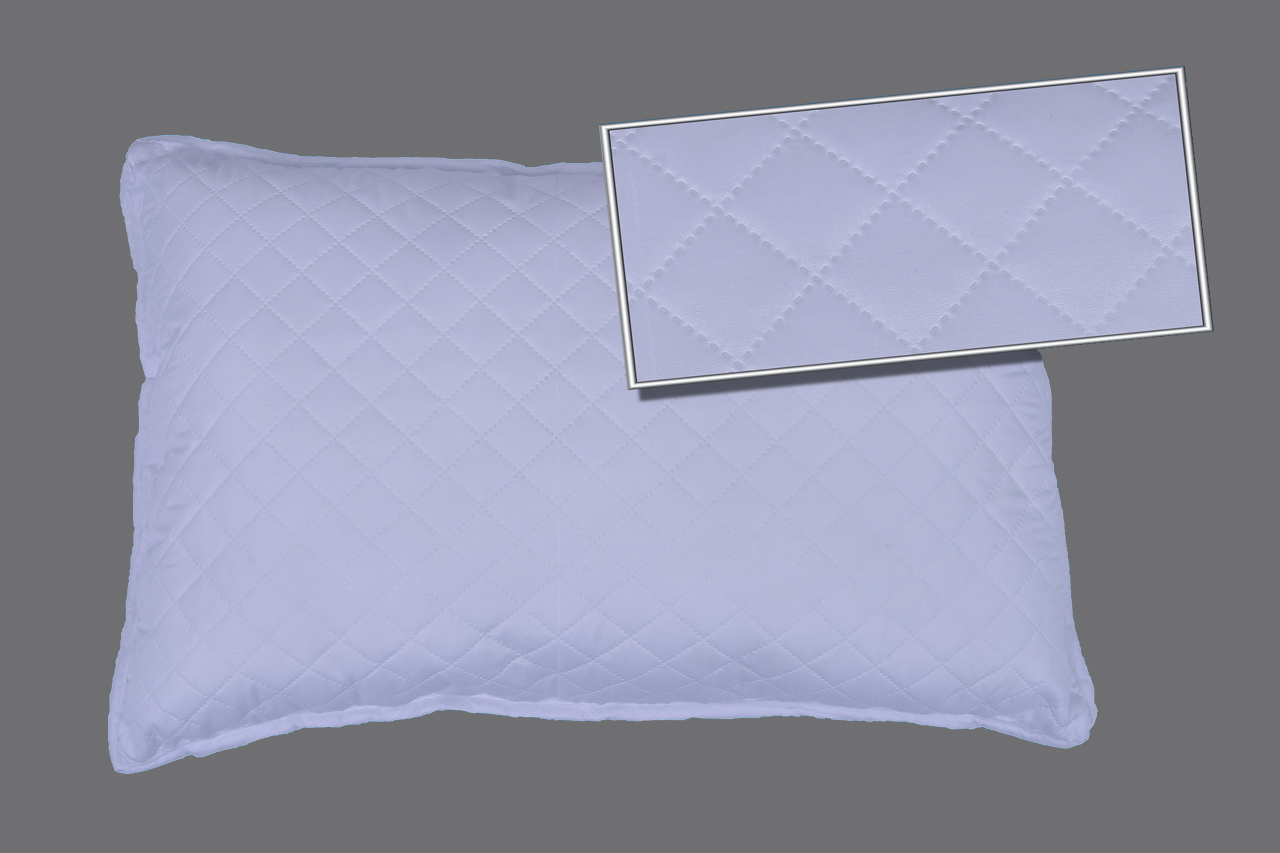

Sleeping bags,home textiles, bedding, bedspreads, sofa cover, mattress, bed sheets,non woven cloth,

picnic mat,etc
