TC-60 Ultrasonic Lace Sewing Machine

  • Technical parameters

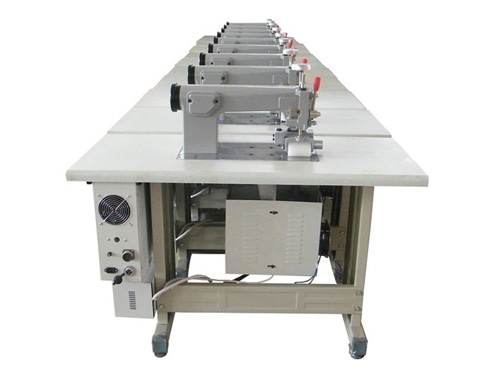

Ultrasonic Lace Sewing Machine

Parameter

Item

Ultrasonic Lace Sewing Machine(CE qualified)

Model

TC-60

Power Source

220V /110V

Inout Power

2000W (3 power adjustable)

Output Frequency

20KHZ

Working Speed

0-20M/minute

Roller Size

23MM-60MM Width

Ø50MM

Dimension of packing

127CM *60CM*130CM

Gross Weight

140KG

Pressure System

Air type or manual type

Feature

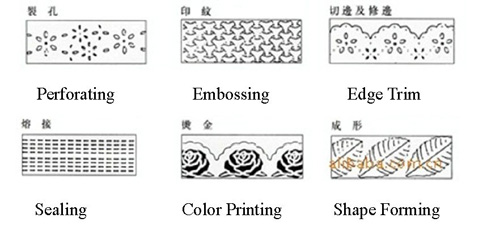

1. Use ultrasonic vibration energy to cut, weld, seam sealing, perforating, ultrasonic embossing, stitching, slitting, forming,etc
2. Eliminating traditional needle and thread,reduce material cost
3. No dissipated edge, wrinkle and shrinkage. could print color on the laces with colored paper.
4. Continuous working for mass production
5. No smoke, spark and danger during operation
6. Analogue and Digital circuit ultrasonic generator system for choice and different application

7. Imported accessories and advanced electronic circuit make sure stable performance
8. Thousands of pattern roller designs available,easily to replace


Functions


Suitable material

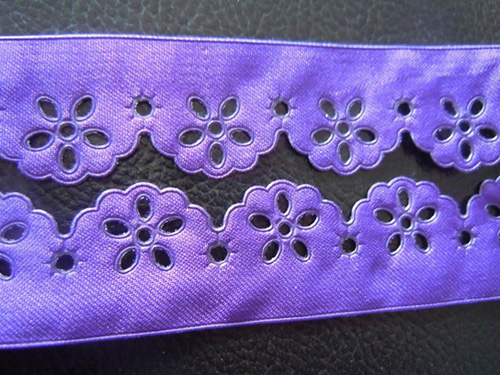

Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven,satin,
Thermo plastic films.and other synthetic fibre material


Application

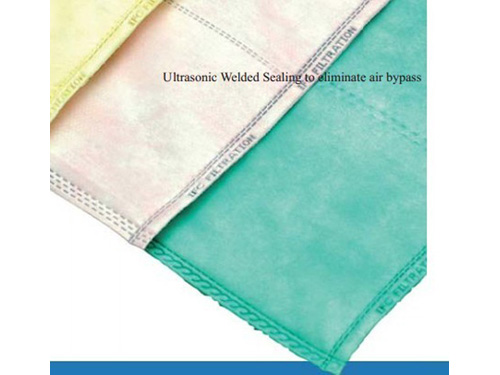

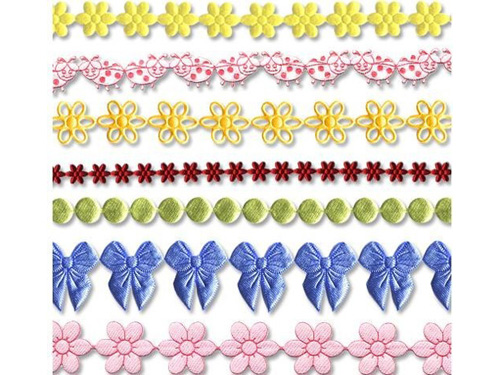

Ultrasonic Lace sewing Machine is widely used in production of lace clothing,synthetic filter bag, surgical gown , hair decorations,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,pp woven sealing,etc
