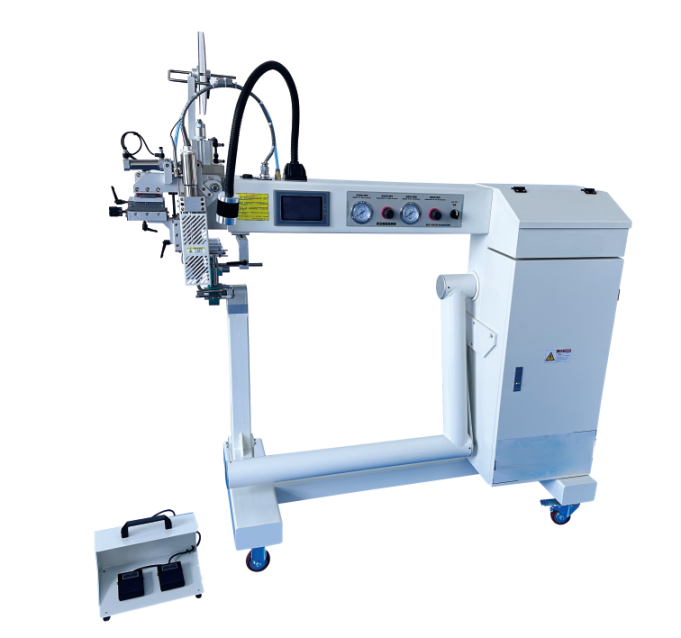

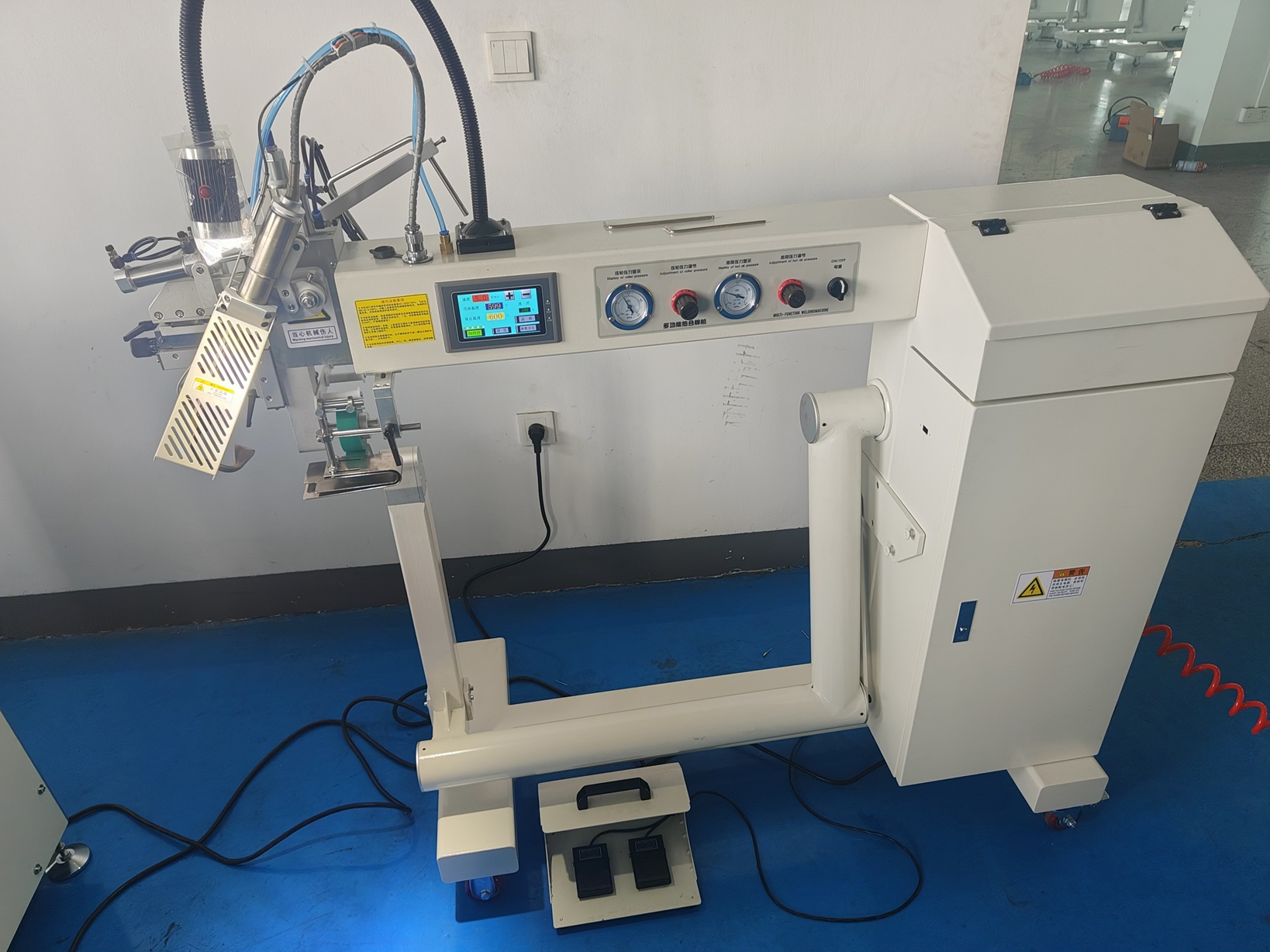

Muntifunction Hot Air Welding Machine applies the microcomputer technology, digital setting and parameter adjustment by PLC- controlled program, to provide the advantages of easy operation, easy maintenance andbetter performance and reliability.

Muntifunction Hot Air Welding Machine provides extra- large operation space,which is widely applied to PVC, PU, waterproof and leakproof clothing of rubber fabric or rubber products( for example, tent, screen,waterproof bag, car cover, ship cover, waterproof zipper, military,waterproof cover, etc.) and is suitable for the factory manufacturing waterproof protection device of large equipment.

 Parameter

1.Model:TC-A12

2.Power (max ) :3000W ,Rated voltage :AC~ 220V, Rated frequency: 50/ 60Hz

3.Hot air temperature( max): 700℃, Hot block temperature( max): 450℃.

4.Power of heating tube: 2500W.

5.Total pressure: 0. 35~ 0.5

6.Pressure of upper column

7.Operation speed :20m /min

8. Air Pressure:0 .01 ~0 .5Mpa .

9.Roller width :15 /20 /30 /40 /50mm

10.Roller diameter :75mm

11.Width of hot air nozzle :10 /20 /30 /45mm

Features

1.Bigger operation space,widely used in coated PVC fabric welding,such as tent house,inflatable boat/water tank,banner etc

2. Precise Temperature control, Hot Air can be up to 750℃

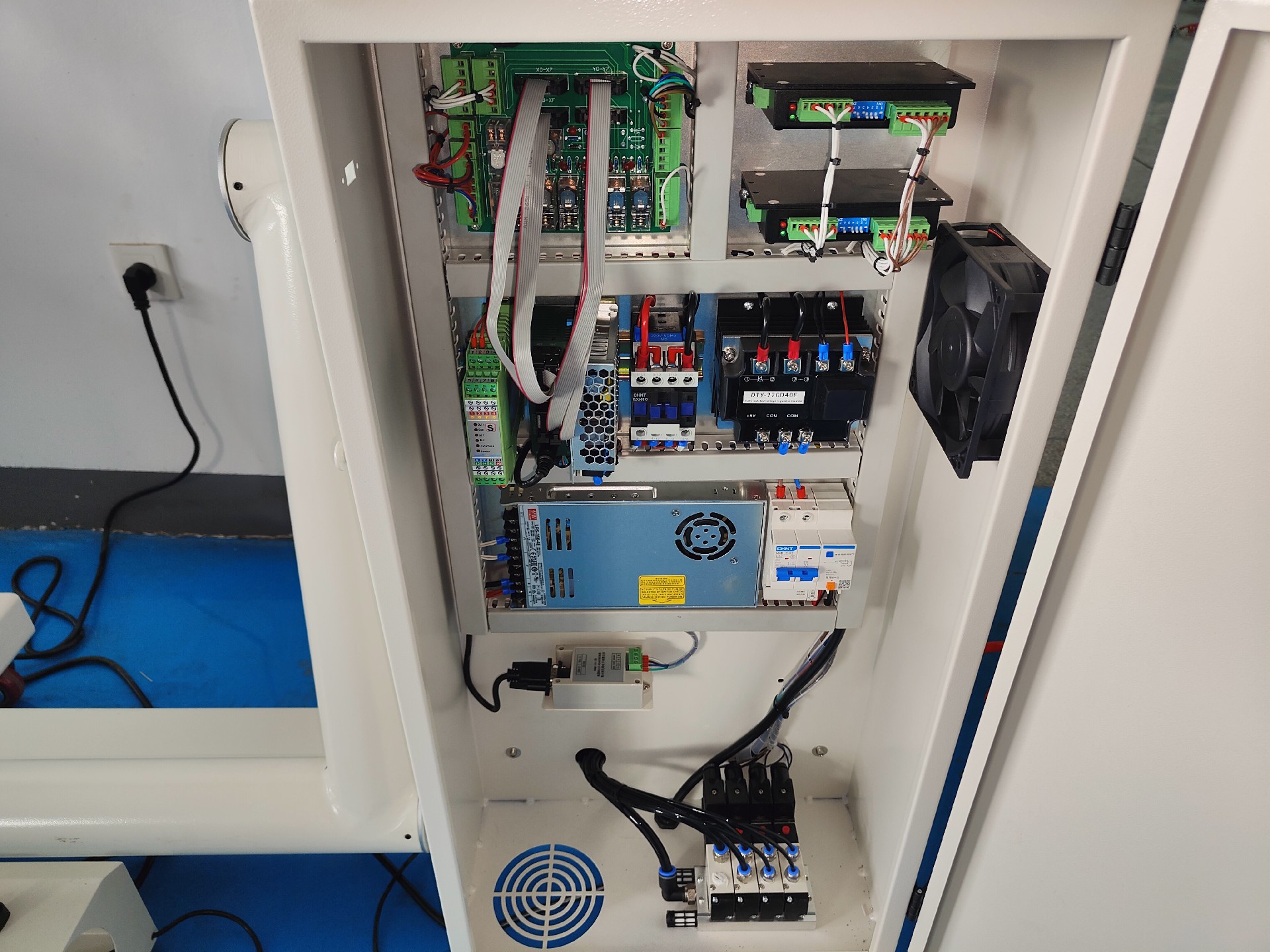

3. Editable PLC control,touch screen display

4. Auto temperature control with warning device for the up limit temperature

5. Auto compensation and reverse

6. Double pedals control

7. It could work up to 24 hours

8. Blowing-in hot air is filtrated without any water and oil

9. Super strong torsional dynamic design

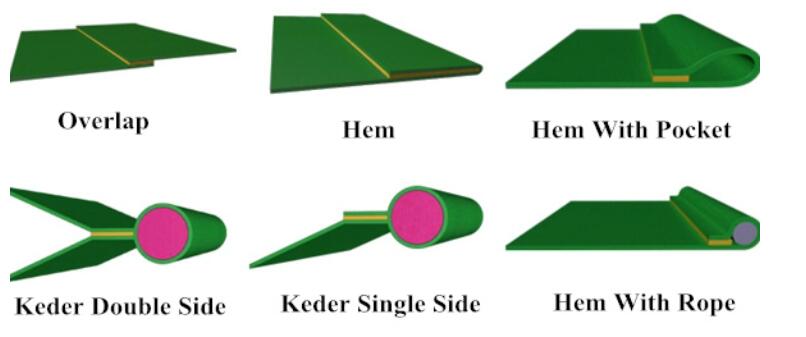

Function：

Application
Muntifunction Hot Air Welding Machine is widely used in tents, boats,banners, sun shading, swimming poor, water tanks,etc
